Fined Tubes :

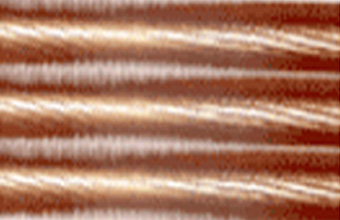

Finned Tubes :
Straight Fins : Max 12 fins/inch

Tube Size :
3/8”, 1/2", 5/8”, 3/4" & 1", 1.25” Outer Dia.

Max Length :
6 Meters

Material :
C.S., Copper, S.S.304/316, Cupro-Nickel, Brass.
Finned Tubes

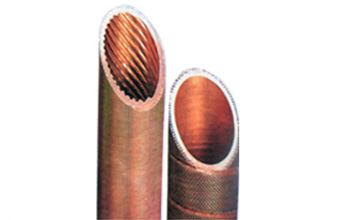

Integral Finned Tubes :
Max Length : Max 19 fins/inch, 26 fins/inch

Tube Size : 3/8”, 1/2”, 5/8”, 3/4”, 1” Outer Dia.

Max Length : 6 meter

Material : C.S., Copper, S.S.304/316, Cupro-Nickel, Brass.

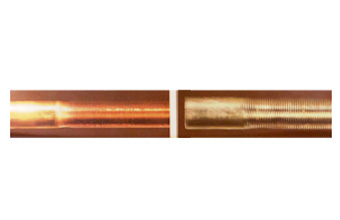

Integral Finned Tubes
Integral Finned Tubes
Wire Wound Finned Tubes :

Tube Size : 3/8",1/2", 5/8", 3/4", 1”, 1.25” Outer Dia.

Max Length :
6 meters

Material :
C.S., G.I., Copper, S.S.304/316,
Cupro-Nickel, Brass
Wire Wound finned tubes

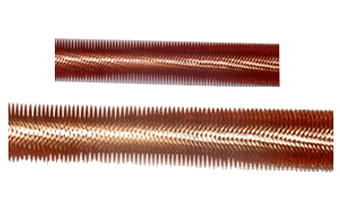

Crimpted Strip Root-Soldered Finned Tube :

Max 11 Fins/inch

Tube Size :
3/8”, 1/2", 5/8”, 3/4" & 1", 1.25” Outer Dia.

Max Length :
6 meters

Material : C.S., Copper, S.S.304/316, Cupro-Nickel
Crimpted Strip Root-Soldered Finned Tube

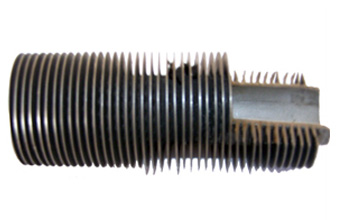

Helical Tension Wound Finned Tubes :
Max 16 fins/inch

Tube Size :
3/8”, 1/2", 5/8”, 3/4" & 1", 1.25” Outer Dia.

Max Length :
6 meters

Material : S.S.304/316.
Helical Tension Wound Finned Tubes
Elliptical Finned Tubes :
Max 16 fins/inch

Tube Size :
3/8”, 1/2", 5/8”, 3/4" & 1", 1.25” Outer Dia.

Max Length :
6 meters

Material : S.S.304/316.

Material : C.S., Copper, S.S.304/316, Cupro-Nickel, Brass.
Elliptlcal Finned Tubes

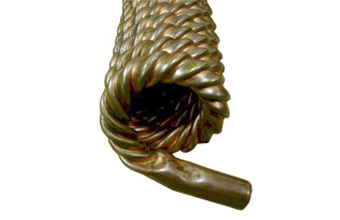

Corrugated Finned Tubes :

Tube Size : 3/8”, 1/2", 5/8”, 3/4" & 1", 1.25” Outer Dia.

Max Length :
6 meters

Material : S.S.304/316.
Corrugated Finned Tubes

Request A Quote

Manufacturer & Designers :


Air & Water Cooled
   Heat Exchangers
Oil Coolers
Intercoolers & Aftercoolers
   for Centrifugal Cosmpressors
Radiators
Evaporators
Condensers
Chillers
Wire Wound Fin Tubes
Crimpted Strip Root Solder
    Fintubes
Straight Fintubes
Integral Fintubes
Helical Tension Wound Fined
   Tubes
Cooling Coils for Air
   Conditioners.


We are Manufacturers & Designers of Heat Exchangers and our setup is situated at Hadapsar, Pune ( Maharashtra, India )
