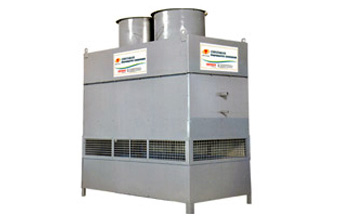

Evaporative Condensers




Design Parameter
Condensing temperature 40°c for Ammonia wet bulb temperature 26°c *
We can design for any capacity, rating as per customers requirement.

Technical Specification
Body constructed with G .1. Sheet and hot deep galvanising structure.
Condenser unit complete with SS-304, with 025.4,019.05. Tube
Airfans - axial flow fan, motor with IP - 55 insulation.

Salient Features
• Compact Design, Space Saving
• Chocking Free Spray Nozzle
• Design Base - HTRI

Evaporative Condensers

Application
• Dairy
• Brewery
• Chilling Plants
• Cold Storage
• Food Processing Industry
• Industrial refrigeration where ammonia is used as refrigerant.

Advantages
• Substantial energy saving as compare PHE & Cooling Tower.
• Substantial saving in space, piping as compared to PHE & Cooling Tower.

Standard Models Of Evaporative Condenser

Manufacturer & Designers :


Air & Water Cooled
   Heat Exchangers
Oil Coolers
Intercoolers & Aftercoolers
   for Centrifugal Cosmpressors
Radiators
Evaporators
Condensers
Chillers
Wire Wound Fin Tubes
Crimpted Strip Root Solder
    Fintubes
Straight Fintubes
Integral Fintubes
Helical Tension Wound Fined
   Tubes
Cooling Coils for Air
   Conditioners.

Sr. No. Model No. Capacity of Condenser In mtr. Fan (KW each) No.of Fan Total Air Flow m3 hr. Pump Power KW LPM.
1 CH-E-80 80 2 X 1 X 1.85 0.37 2 8000 0.75 150
2 CH-E-100 100 2 X 1 X1.85 0.37 2 8000 0.75 160
3 CH-E-150 150 2.2 X 1.1 X 1.85 0.37 2 10000 1.5 320
4 CH-E-200 200 2.2 X 1.1 X 2 0.37 3 21000 1.5 450
5 CH-E-250 250 2.6 X 11 X 2 0.37 3 26000 2.1 520
6 CH-E-300 300 2.8 X 1.1 X 2.2 0.37 4 30000 2.1 650
7 CH-E-350 350 3.5 X 1.1 X 2.2 0.37 4 34000 2.1 800
8 CH-E-400 400 3.5 X 1.1 X2.5 0.45 4 40000 2.1 850
9 CH-E-450 450 3. 7 X 1.1 X 2.5 0.45 4 41000 2.1 1000
10 CH-E-500 500 3. 7 X 1.1 X 2.5 0.45 4 42500 2.1 1100
